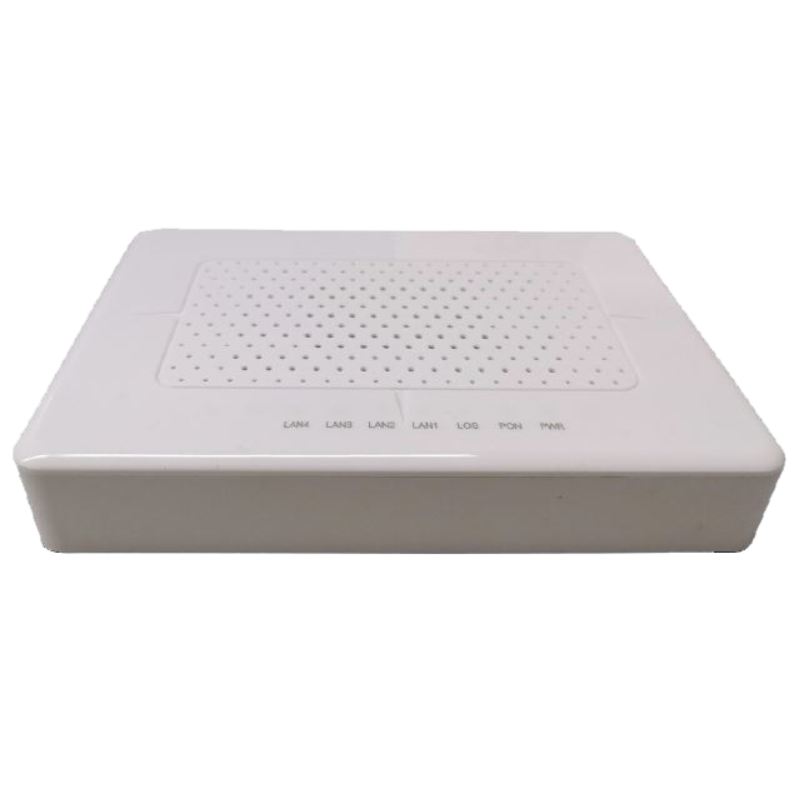

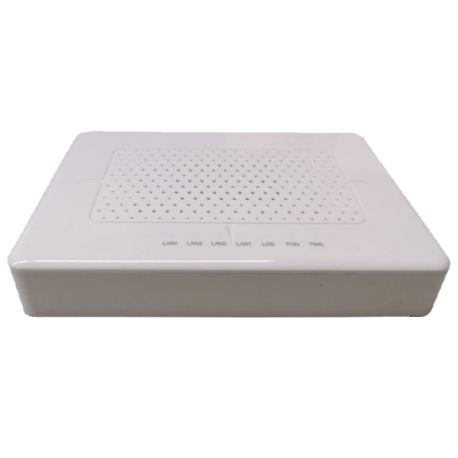

FD504G-X-R410 4GE Dual-Mode XPON ONU

Item

Parameter

EPON/GPON Interface

SC/UPC single mode single fiber

GPON：FSAN G.984.2 standard, Class B+

EPON：1000BASE-PX20+ symmetric

GPON：2.488Gbps/1.244Gbps downstream/upstream

EPON：1.25Gbps downstream/upstream

Wavelength: Transmit: 1310nm Receiver: 1490nm

Receiving sensitivity : GPON：-28dBm EPON：-27dBm

Saturated power : GPON：-8dBm EPON：-3dBm

Transmitting power : GPON：0.5～5dBm EPON:0～4dBm

User Ethernet
Interface

4*10/100/1000 auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Management Mode

OMCI, OAM, WEB, Telnet

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

Power

<4.5W, 12V/0.5A power supply adapter

Physical Specifications

Item Dimension：160mm(L) x 112mm(W) x 28.5mm (H)

Item Net Weight：about 198g

EnvironmentalSpecifications

Operating temperature: 0 to 40℃
Operating humidity: 10% to 90%(Non-condensing)
